Bump Chart
Chart overview
A bump chart replaces raw values with ranks on the y-axis (rank 1 at top), draws a smoothed line for each entity across time, and makes rank inversions - where one item overtakes another - the central visual story.
Key points
- Researchers use it to track journal citation rankings, species abundance rankings across survey years, or country performance indices across study waves.
- It communicates competitive dynamics and volatility that raw trend lines obscure.
Python Tutorial
How to create a bump chart in Python
Use the full tutorial for implementation details, troubleshooting, and chart variations in matplotlib, seaborn, and plotly.
How to Create a Bar Chart in PythonExample Visualization
Create This Chart Now
Generate publication-ready bump charts with AI in seconds. No coding required – just describe your data and let AI do the work.
View example prompt
"Create a bump chart from my ranking data. Invert the y-axis so rank 1 is at top, draw smoothed S-curve lines for each entity, label each line at the first and last time point, use a distinct colour per entity, and format as a publication-quality figure."
How to create this chart in 30 seconds
Upload Data
Drag & drop your Excel or CSV file. Plotivy securely processes it in your browser.
AI Generation
Our AI analyzes your data and generates the Bump Chart code automatically.
Customize & Export
Tweak the design with natural language, then export as high-res PNG, SVG or PDF.
Newsletter
Get one weekly tip for better bump charts
Join researchers receiving concise Python plotting techniques to improve chart clarity and reduce revision cycles.

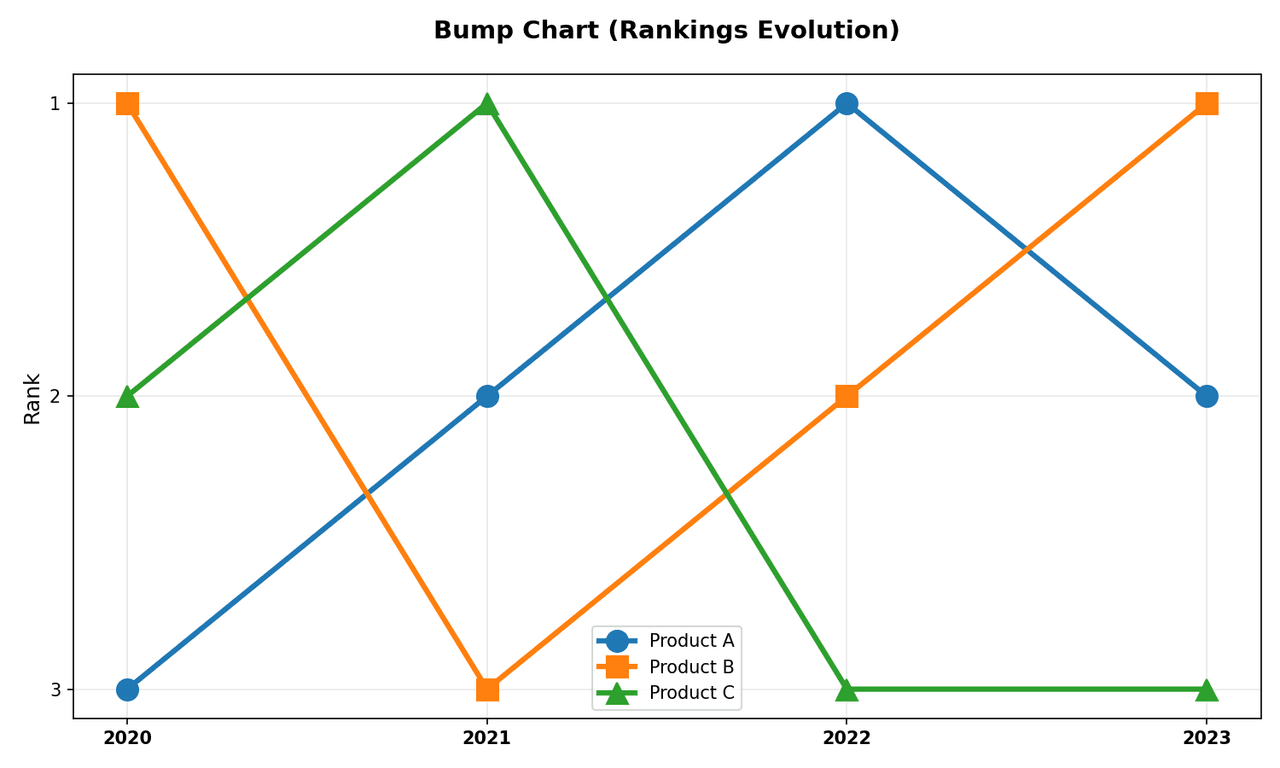

Python Code Example
import numpy as np
import matplotlib.pyplot as plt
years = [2020, 2021, 2022, 2023]
rank_a = [3, 2, 1, 2]
rank_b = [1, 3, 2, 1]
rank_c = [2, 1, 3, 3]
plt.figure(figsize=(10, 6))
plt.plot(years, rank_a, 'o-', linewidth=3, markersize=12, label='Product A')
plt.plot(years, rank_b, 's-', linewidth=3, markersize=12, label='Product B')
plt.plot(years, rank_c, '^-', linewidth=3, markersize=12, label='Product C')
plt.gca().invert_yaxis()
plt.yticks([1, 2, 3])
plt.xticks(years, fontweight='bold')
plt.title('Bump Chart (Rankings Evolution)', fontsize=14, fontweight='bold', pad=20)
plt.ylabel('Rank', fontsize=12)
plt.legend()
plt.grid(alpha=0.3)
plt.tight_layout()
plt.savefig('plotivy-bump-chart.png', dpi=150)
print("Bump chart generated successfully.")
Opens the Analyze page with this code pre-loaded and ready to execute
Console Output
Bump chart generated successfully.
Common Use Cases
- 1Tracking journal or conference ranking changes across assessment years
- 2Monitoring species abundance rank shifts across annual biodiversity surveys
- 3Comparing country performance rank changes in international health indices
- 4Visualising athlete or team league position changes across a competition season
Pro Tips
Use sigmoid-interpolated (S-curve) line segments between time points for a cleaner look
Label entity names directly at the leftmost and rightmost time points to avoid a legend
Invert the y-axis and label it explicitly so rank 1 clearly means top performer
Limit to around 10-15 entities maximum before the chart becomes too cluttered
