ROC Curve
Chart overview

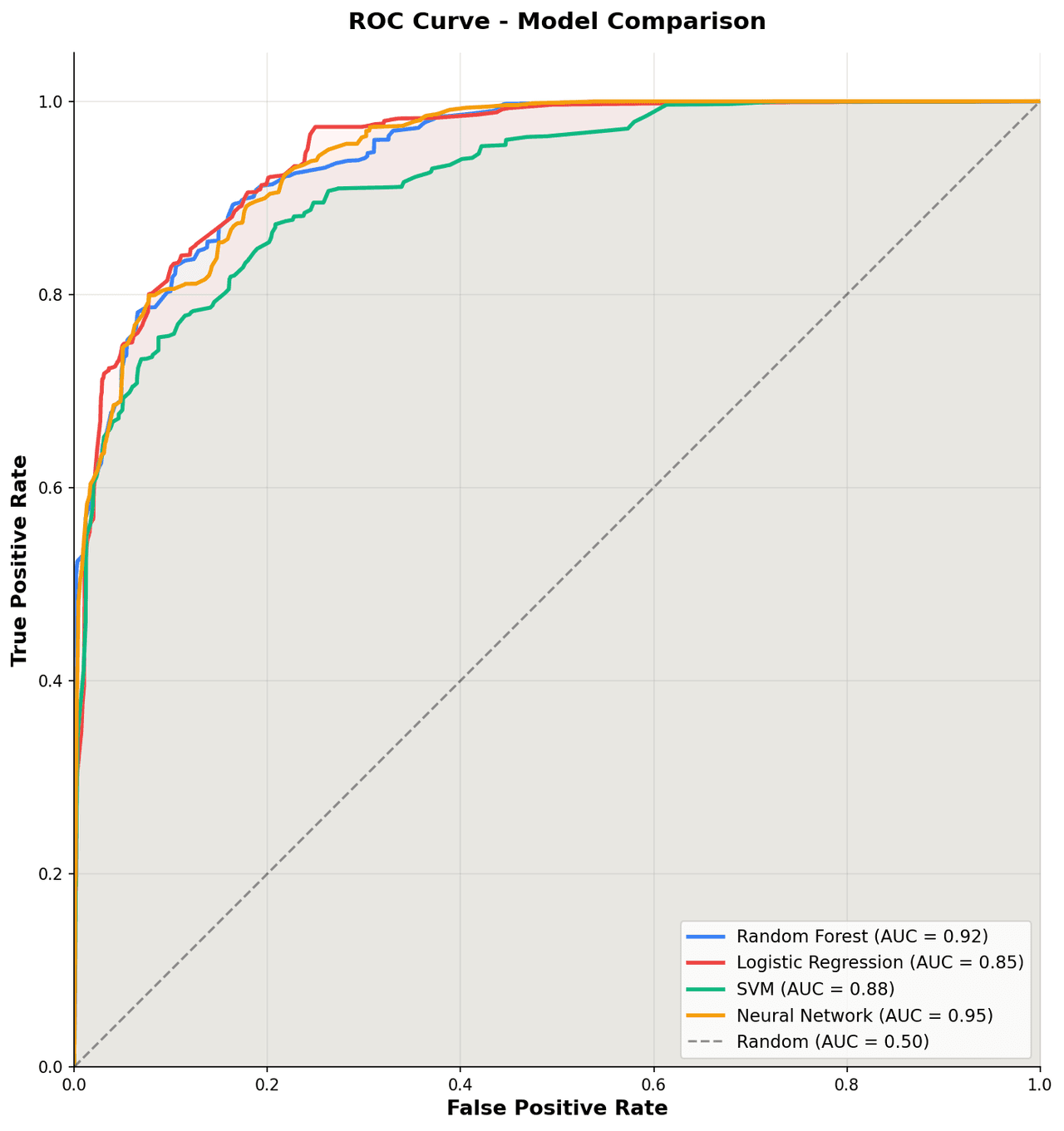

The Receiver Operating Characteristic (ROC) curve plots sensitivity against 1-specificity at all possible classification thresholds, with the area under the curve (AUC) summarizing overall discriminative performance.
Key points
- Clinicians and biostatisticians use ROC analysis to select optimal diagnostic cutoffs, compare competing biomarkers, and validate prediction models in medical decision-making.
- Confidence intervals for AUC are computed by DeLong method or bootstrapping for rigorous statistical comparison between curves.
Example Visualization
Create This Chart Now
Generate publication-ready roc curves with AI in seconds. No coding required – just describe your data and let AI do the work.
View example prompt
"Create a ROC curve from my data. Plot false positive rate on the x-axis and true positive rate on the y-axis. Shade the area under the curve and annotate AUC with its 95% confidence interval in the legend. Draw the diagonal no-discrimination reference line as a dashed gray line. If multiple models are provided, overlay curves in distinct colors. Mark the optimal Youden J threshold point with a circle. Use journal formatting with Arial font and no top or right spines."
How to create this chart in 30 seconds
Upload Data
Drag & drop your Excel or CSV file. Plotivy securely processes it in your browser.
AI Generation
Our AI analyzes your data and generates the ROC Curve code automatically.
Customize & Export
Tweak the design with natural language, then export as high-res PNG, SVG or PDF.
Python Code Example
Console Output
Figure saved: plotivy-receiver-operating-characteristic.png
Common Use Cases
- 1Evaluating and comparing diagnostic biomarkers for disease detection in case-control studies
- 2Selecting optimal clinical decision thresholds balancing sensitivity and specificity
- 3Validating machine learning classifiers in clinical prediction model development
- 4Meta-analysis of diagnostic test accuracy studies using hierarchical summary ROC curves
Pro Tips
Report AUC with 95% CI computed via bootstrapping or DeLong method, not just the point estimate
Mark the optimal threshold by Youden index (maximizing sensitivity + specificity - 1) with a labeled point
Use equal aspect ratio so the diagonal reference line appears at exactly 45 degrees
When comparing two AUCs, use DeLong paired test and annotate the p-value on the figure
