Spectral Density Plot
Chart overview
A spectral density plot transforms a time series into the frequency domain, showing how signal variance or power is distributed across frequencies.
Key points
- Researchers in geophysics, neuroscience, climate science, and signal processing use it to identify dominant periodic forcing, filter noise, and characterize stochastic processes.
- The Welch method is preferred over the raw periodogram because it reduces variance through segment averaging.

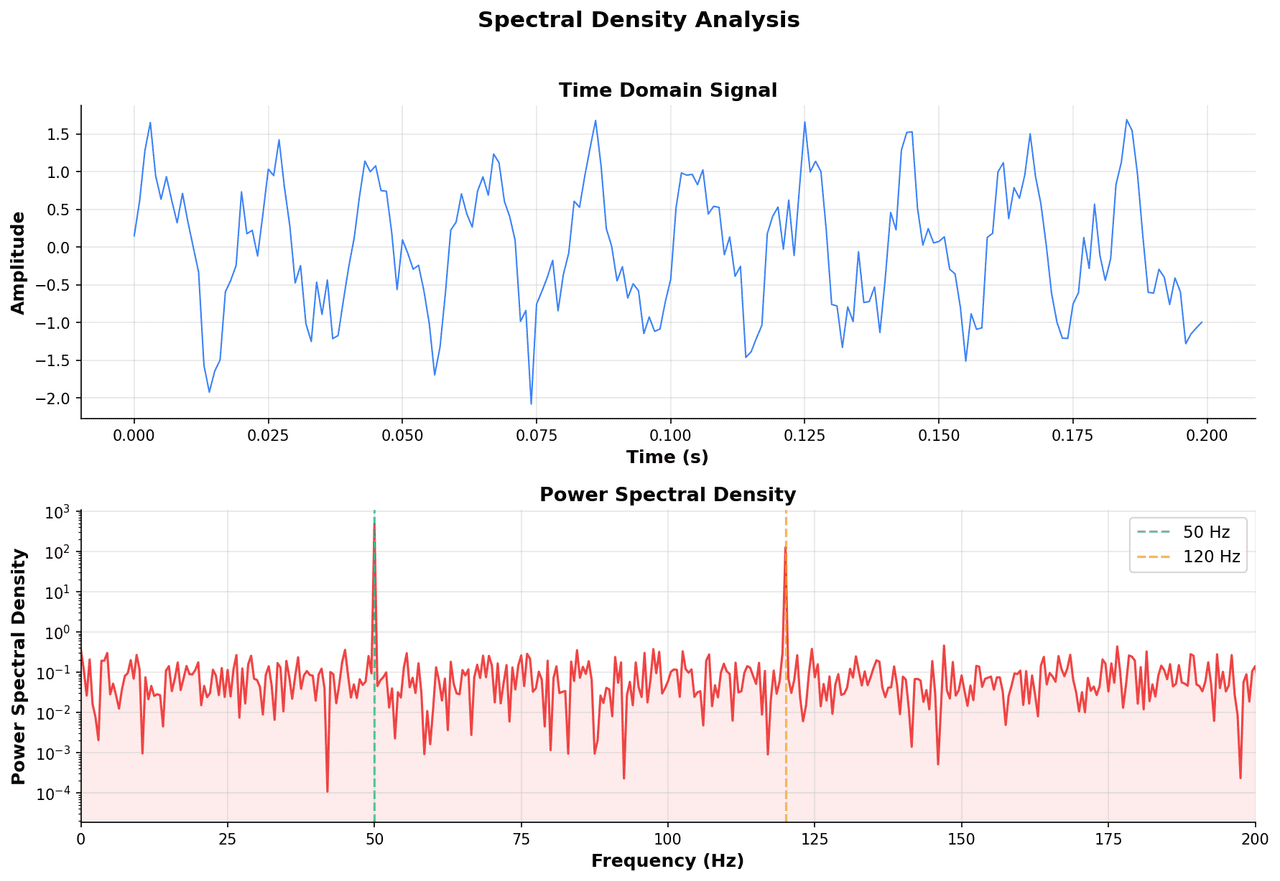

Example Visualization
Create This Chart Now
Generate publication-ready spectral density plots with AI in seconds. No coding required – just describe your data and let AI do the work.
View example prompt
"Create a power spectral density plot from my time series data. Use Welch's method with appropriate segment length, plot on log-log axes, annotate dominant frequency peaks with their period equivalents, add a reference slope line if relevant, and include units on both axes."
How to create this chart in 30 seconds
Upload Data
Drag & drop your Excel or CSV file. Plotivy securely processes it in your browser.
AI Generation
Our AI analyzes your data and generates the Spectral Density Plot code automatically.
Customize & Export
Tweak the design with natural language, then export as high-res PNG, SVG or PDF.
Python Code Example
Console Output
Figure saved: plotivy-spectral-density-plot.png
Common Use Cases
- 1Identifying annual and diurnal cycles in atmospheric temperature records
- 2Detecting dominant brainwave frequencies in EEG neural recordings
- 3Characterizing ocean wave energy spectra for offshore structure design
- 4Diagnosing sensor noise frequency signatures in geophysical instruments
Pro Tips
Choose Welch segment length to balance frequency resolution and variance reduction (8 to 16 segments)
Apply a Hann window to reduce spectral leakage from finite record length
Use log-log axes to reveal power-law behavior such as slopes of -2 or -5/3 in turbulence spectra
Annotate peaks with their period (1/frequency) in physical units to aid interpretation
