Stacked Bar Graph
Chart overview
Stacked bar charts display multiple data series as segments within a single bar, showing both the total and the composition for each category.
Key points
- They effectively communicate part-to-whole relationships and enable comparison of totals across categories.
- Their weakness is just as specific: only the bottom segment and the total sit on a common baseline, so readers compare those two accurately while every middle segment floats, making its changes across bars hard to judge (Cleveland and McGill's position-versus-length hierarchy).
- Put the series whose trend matters most at the bottom, keep it to 3-5 segments, and order the rest by size or logical sequence rather than alphabetically.
Practical guidance
df. plot(kind='bar', stacked=True) is the pandas one-liner; in raw matplotlib, accumulate a bottom= running total per series. Use the 100% stacked variant (divide each row by its total) when composition is the message and totals are noise - but then report totals somewhere else, because the normalization hides them. If readers must compare each individual series across categories, grouped bars or small multiples of simple bars beat a stack; for many time periods, a stacked area chart is usually the better form.
Create a Stacked Bar Graph with your data using AI — no coding required.
Python Tutorial
How to create a stacked bar graph in Python
Use the full tutorial for implementation details, troubleshooting, and chart variations in matplotlib, seaborn, and plotly.
How to Create a Bar Chart in PythonExample Visualization
Create This Chart Now
Generate publication-ready stacked bar graphs with AI in seconds. No coding required – just describe your data and let AI do the work.
View example prompt

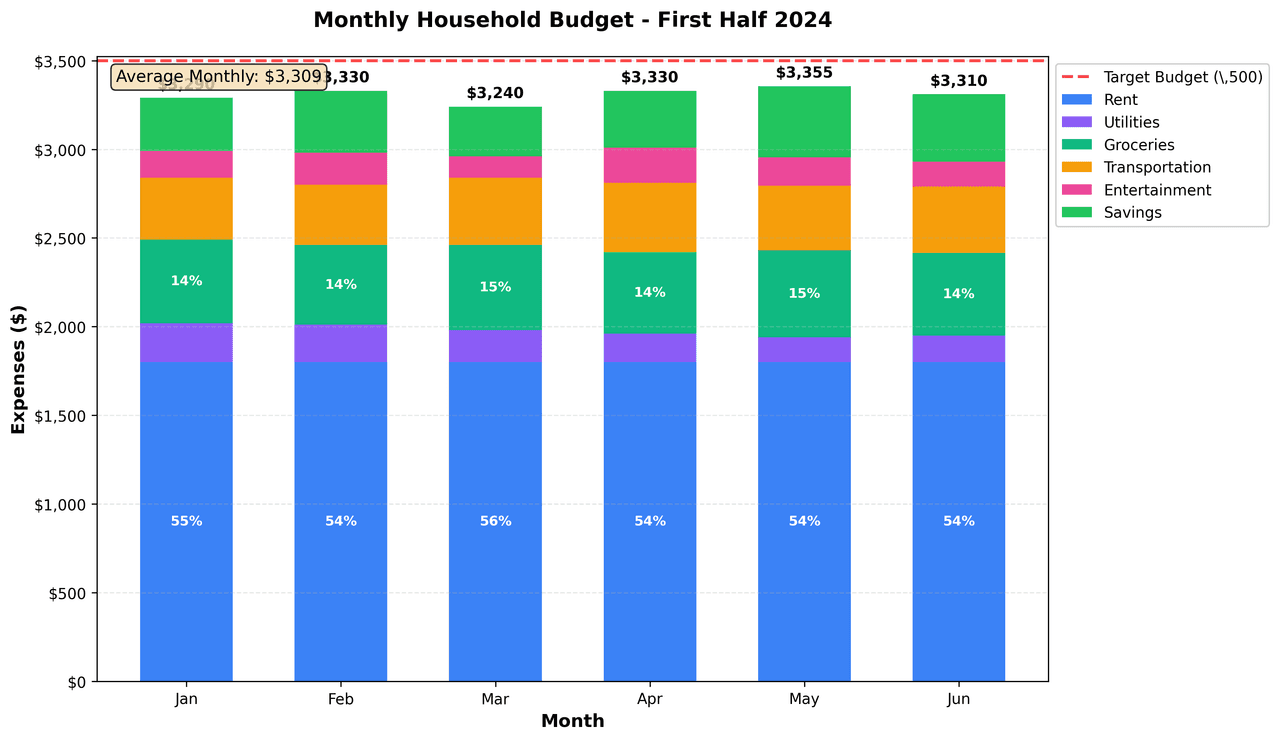

"Create a professional stacked bar chart showing 'Monthly Expenses Breakdown' for a household budget over 6 months (Jan-Jun). Generate realistic budget data in dollars: Rent ($1,800 fixed), Utilities ($150-250 seasonal), Groceries ($400-500), Transportation ($300-400), Entertainment ($100-200), Savings ($200-400). Stack order from bottom: essential (rent, utilities, groceries) to discretionary (entertainment, savings). Use a professional color palette (blues, purples, greens, oranges). Add bold total expense labels above each bar. Include a red dashed horizontal target budget line at $3,500. Add percentage labels inside segments exceeding 10% of total, in white text for readability. Legend positioned outside the plot. Title: 'Monthly Household Budget - First Half 2024'. Add a highlighted annotation box in the top-left showing the average monthly expense. Grid lines on Y-axis only. Format Y-axis as currency."
