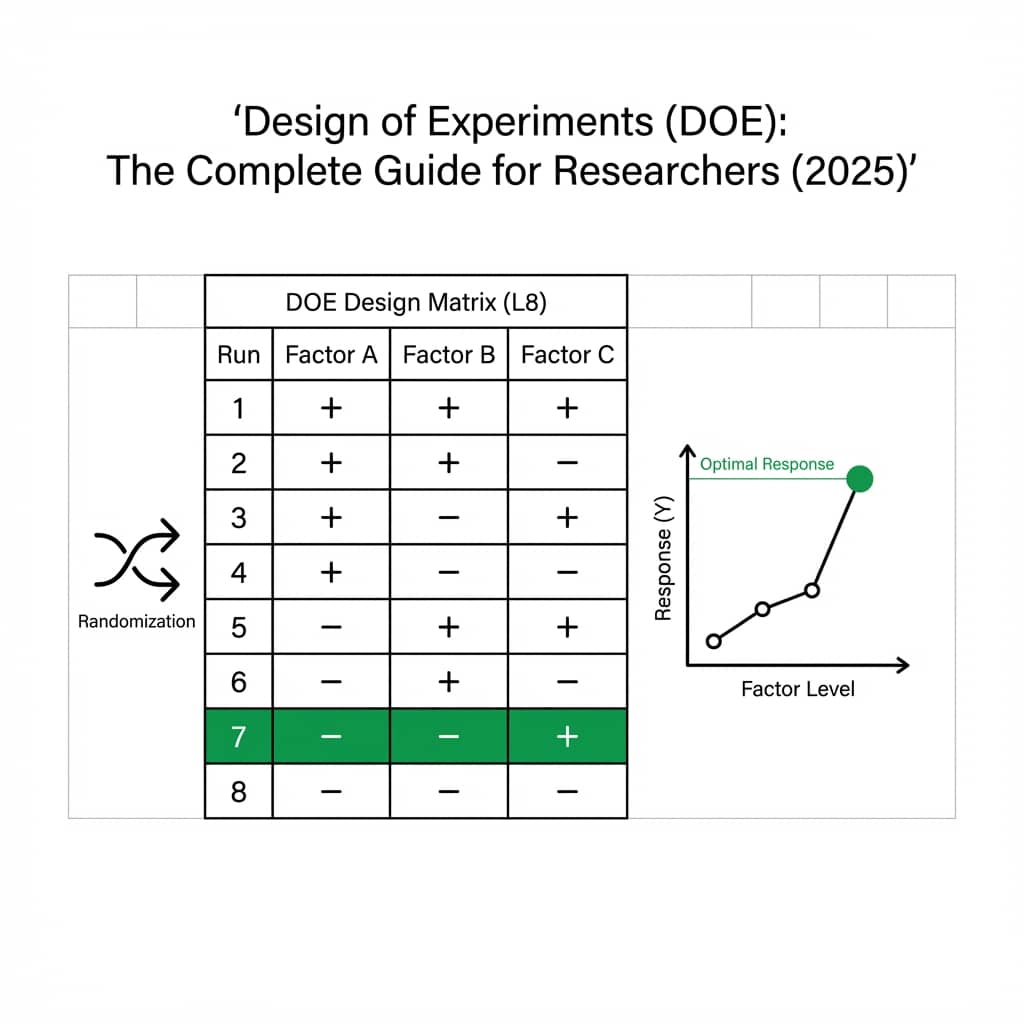

Design of Experiments (DOE): The Complete Guide for Researchers (2026)
Design of Experiments (DOE) is the foundation of rigorous scientific research. Whether you are optimizing a chemical process, testing drug efficacy, or evaluating material properties, a well-designed experiment is the difference between publishable results and wasted resources.
This guide covers everything from basic DOE principles to advanced techniques, with a live Python editor demonstrating factorial analysis you can run and modify.
What You Will Learn
0.Live Code Lab: Factorial Analysis
1.What is DOE?
2.Types of Designs
3.The 5-Step DOE Process
4.Example: Chemical Optimization
5.Visualizing DOE Results
0. Live Code Lab: 2^3 Factorial Analysis
A complete 2^3 full factorial design analysis showing main effects and interaction plots. Three factors (temperature, pressure, catalyst) at two levels each. Modify the effect sizes to see how interactions change.
Preparing preview
Running once automatically on first load
Learn by Experimenting
This is a safe playground for learning! Try changing:
- • Colors: Modify color values to see different palettes
- • Numbers: Adjust sizes, positions, or data ranges
- • Labels: Update titles, axis names, or legends
Edit the code, run it, then open the full data visualization tool to continue with your own dataset.
1. What is Design of Experiments?
DOE is a systematic method for determining relationships between factors affecting a process and the output of that process. It allows you to:
Identify Key Factors
Determine which variables have the biggest impact on your outcome
Understand Interactions
Discover how multiple variables work together (synergy or antagonism)
Optimize Conditions
Find the combination of settings that maximizes performance
Minimize Runs
Get maximum information from the fewest experiments possible
2. Types of Experimental Designs
Full Factorial (2^k)
Tests all possible combinations of factors at all levels. Best for 2-4 factors.
Example: 2^3 = 8 runs for 3 factors at 2 levels each
Fractional Factorial
Uses a subset of runs to estimate main effects when you have many factors (5+). Efficient for screening experiments.
Example: 2^(6-2) = 16 runs instead of 64 for 6 factors
Response Surface Methodology (RSM)
Used for optimization after screening. Central composite and Box-Behnken designs help find optimal conditions in continuous factor spaces.
3. The 5-Step DOE Process
Define Your Research Question
Start with a clear hypothesis. What factors might affect your outcome? What is the expected direction of effects?
Select Factors and Levels
Choose 2-6 factors. Each factor should have 2-3 levels (low, medium, high). More factors = exponentially more runs.
Choose Your Design
Full factorial for 2-4 factors, fractional for 5+, RSM for optimization. Match the design to your goals.
Randomize and Execute
Randomization prevents bias. Execute trials in random order and carefully record all measurements.
Analyze and Visualize
Calculate main effects and interactions. Create publication-quality figures with Plotivy.
Pro Tip
Always include center-point replicates (mid-level of all factors) to check for curvature and estimate pure error.
4. Example: Optimizing a Chemical Reaction
You are optimizing yield in a chemical synthesis with three factors: temperature, pressure, and catalyst concentration. A 2^3 full factorial design requires only 8 runs to understand all main effects and two-way interactions.
| Run | Temperature | Pressure | Catalyst | Yield (%) |
|---|---|---|---|---|
| 1 | Low | Low | Low | 44 |
| 2 | High | Low | Low | 56 |
| 3 | Low | High | Low | 53 |
| 4 | High | High | Low | 73 |
| 5 | Low | Low | High | 50 |
| 6 | High | Low | High | 62 |
| 7 | Low | High | High | 56 |
| 8 | High | High | High | 80 |
5. Visualizing DOE Results
Once your experiments are complete, upload results to Plotivy and ask for visualizations like "Create an interaction plot showing temperature x catalyst effect on yield".
Bar Charts
Main effects comparison
Interaction Plots
Factor interactions
Contour Plots
Response surface
Box Plots
Replicate variability
Try Our Free Experiment Planner
Design factorial experiments with AI guidance. Get randomization schemes and measurement plans in minutes.
