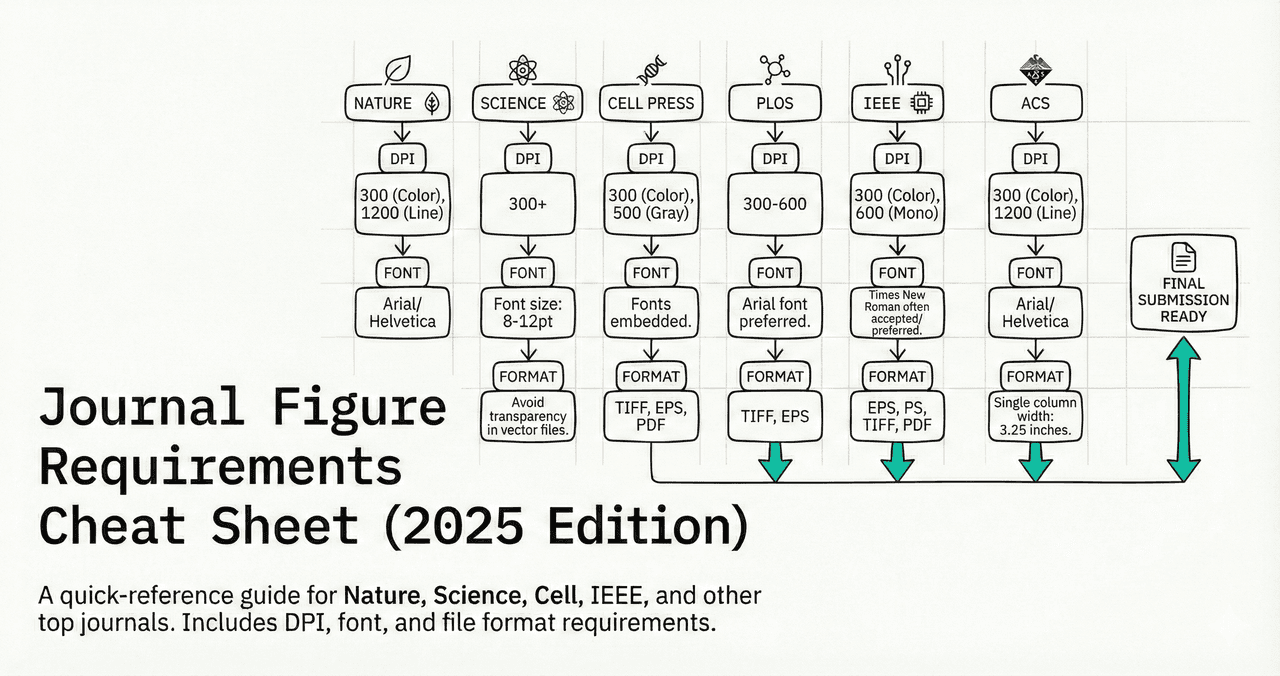

Journal Figure Requirements Cheat Sheet (2026 Edition)
Bookmark this page. Every major journal has different figure requirements for DPI, format, fonts, and sizing. This cheat sheet gives you the specs in one place.
Sections
0.Live Code: Journal-Compliant Figure
1.Quick-Reference Table
2.DPI and Resolution
3.File Format Rules
4.Font and Sizing
5.Color and Accessibility
0. Live Code: Journal-Compliant Figure
This figure meets Nature single-column specs: 89 mm width, 8 pt Arial, 300 DPI, panel label, minimal decoration. Edit the code to match your journal.
Preparing preview
Running once automatically on first load
Learn by Experimenting
This is a safe playground for learning! Try changing:
- • Colors: Modify color values to see different palettes
- • Numbers: Adjust sizes, positions, or data ranges
- • Labels: Update titles, axis names, or legends
Edit the code, run it, then open the full data visualization tool to continue with your own dataset.
1. Quick-Reference Table
| Journal | Min DPI | Formats | Fonts | Single Col | Double Col |
|---|---|---|---|---|---|
| Nature | 300 | TIFF, EPS, PDF | Arial, Helvetica | 89 mm | 183 mm |
| Science | 300 | EPS, PDF, AI | Helvetica, Arial | 85 mm | 174 mm |
| Cell | 300 | TIFF, EPS, PDF | Arial, Helvetica | 85 mm | 174 mm |
| PLOS ONE | 300 | TIFF, EPS | Arial | 83 mm | 173 mm |
| IEEE | 300 | TIFF, EPS, PDF | Times New Roman | 88 mm | 181 mm |
| ACS | 300 | TIFF, EPS | Arial, Helvetica | 84 mm | 175 mm |
| Elsevier | 300 | TIFF, EPS, PDF | Arial, Helvetica | 90 mm | 190 mm |
| Springer | 300 | TIFF, EPS | Arial | 84 mm | 174 mm |
2. DPI and Resolution
Try it
Try it now: review your figure before submission
Upload your current plot and get an AI critique with concrete fixes for clarity, typography, color, and journal readiness.
Open AI Figure Reviewer →Newsletter
Get a weekly Python plotting tip
One concise tip each week for cleaner, faster scientific figures. Built for researchers who publish.
300 DPI
Photographs, continuous tone
600 DPI
Line art, graphs, charts
1200 DPI
Fine line art, thin lines
Common Mistake
Upsampling a 96 DPI image to 300 DPI does not add detail - it just makes the file bigger with blurry pixels. Always generate figures at the target DPI from the start.
3. File Format Rules
TIFF (LZW)
+ Universally accepted, lossless compression
- Large file sizes (10-50 MB)
EPS / PDF
+ Vector = infinite resolution for line art
- Not all journals accept PDF
PNG
+ Small files, lossless, web-friendly
- Some journals reject (use TIFF instead)
JPEG
+ Small file size
- Lossy compression introduces artifacts - avoid for data figures
4. Font and Sizing
Arial or Helvetica (sans-serif). Never use decorative or serif fonts in figures.
6 pt after scaling. Most journals require 7-8 pt for legibility.
8-10 pt bold. Must be readable at final print size.
10-12 pt bold, lowercase (a, b, c) or uppercase (A, B, C) per journal style.
Usually NOT on the figure - goes in the caption instead.
5. Color and Accessibility
Colorblind-safe
Use palettes like viridis, cividis, or Wong palette. Avoid red-green only distinctions.
Grayscale test
Print your figure in B&W. If you can't distinguish groups, add patterns or markers.
Color charges
Some journals charge $500+ for color. Provide a grayscale alternative.
Contrast ratio
Minimum 4.5:1 contrast ratio for text against backgrounds (WCAG AA).
Chart gallery
Journal-Ready Chart Templates
Start from a template that already meets these specs.
Bar Chart
Compares categorical data using rectangular bars with heights proportional to values.
Sample code / prompt
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from scipy import stats
# Generate performance scores for 5 treatment groups
np.random.seed(42)
groups = ['Control', 'Treatment A', 'Treatment B', 'Treatment C', 'Treatment D']
n_samples = 30
Scatterplot
Displays values for two variables as points on a Cartesian coordinate system.
Sample code / prompt
import matplotlib.pyplot as plt
import numpy as np
from scipy import stats
import pandas as pd
# Generate sample data
np.random.seed(42)
n_samples = 200
height = np.random.normal(170, 8, n_samples)
weight = height * 0.6 + np.random.normal(0, 8, n_samples) - 50
Line Graph
Displays data points connected by straight line segments to show trends over time.
Sample code / prompt
import matplotlib.pyplot as plt
import numpy as np
# Generate temperature data for 3 major US cities over 12 months
months = ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']
nyc = [30, 32, 40, 52, 65, 75, 82, 81, 74, 63, 50, 38]
miami = [65, 66, 70, 76, 82, 87, 90, 90, 87, 80, 72, 66]
chicago = [25, 27, 35, 48, 62, 72, 80, 79, 71, 60, 45, 32]
# Create figure with enhanced styling
Heatmap
Represents data values as colors in a two-dimensional matrix format.
Sample code / prompt
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
import numpy as np
# Create correlation matrix for financial metrics
metrics = ['Revenue', 'Profit', 'Expenses', 'ROI', 'Customers', 'AOV', 'Marketing', 'Employees']
correlation_data = np.array([
[1.00, 0.85, -0.45, 0.72, 0.88, 0.65, 0.72, 0.55],
[0.85, 1.00, -0.78, 0.92, 0.75, 0.58, 0.63, 0.48],.png&w=1280&q=70)
Box and Whisker Plot
Displays data distribution using quartiles, median, and outliers in a standardized format.
Sample code / prompt
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from scipy import stats
# Generate gene expression data for 4 genotypes
np.random.seed(42)
genotypes = ['WT', 'KO1', 'KO2', 'Mutant']
n_per_group = 20
Error Bars
Graphical representations of the variability of data indicating error or uncertainty in measurements.
Sample code / prompt
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
# Generate bacterial growth data with replicates
np.random.seed(42)
time_points = np.array([0, 4, 8, 12, 18, 24])
mean_values = np.array([10, 25, 80, 250, 600, 800])
# Generate 5 replicates per time point with noiseGenerate Journal-Compliant Figures Instantly
Tell Plotivy your target journal and it applies the correct DPI, fonts, and dimensions automatically.
Technique guides scientists read next
scipy.signal.find_peaks guide
Tune prominence and width parameters for robust peak extraction.
Savitzky-Golay smoothing
Reduce noise while preserving peak shape and position.
PCA visualization workflow
Move from high-dimensional measurements to interpretable components.
ANOVA with post-hoc brackets
Add statistically correct pairwise significance annotations.
